3cc size clear syringe barrel horizontal
3cc size clear syringe barrel vertical
different sizes syringe barrels


Regular price €25,00

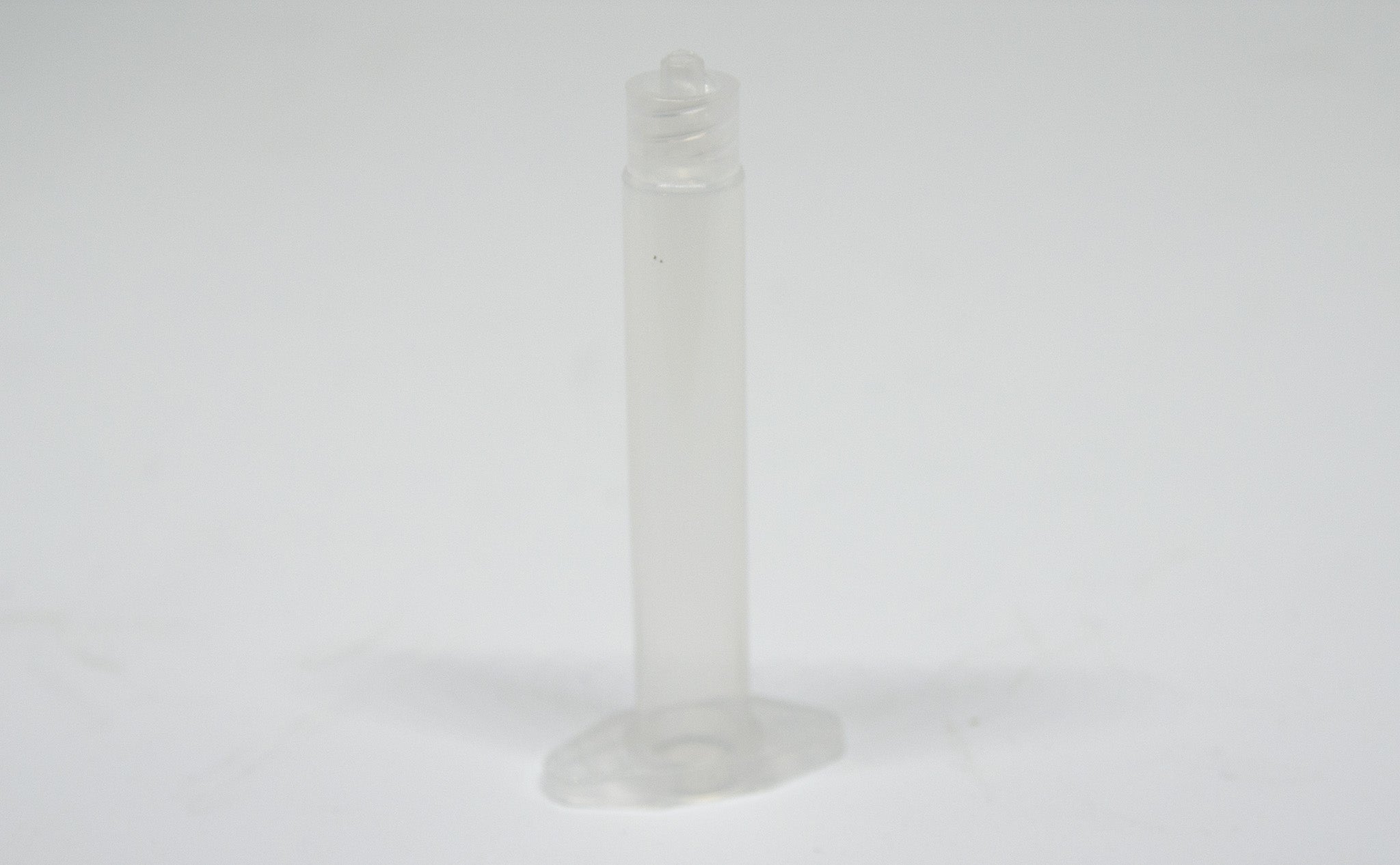

The 3cc dispensing syringe barrels are silicone and chloride- free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. They feature a double Helix Luer lock for secure dispense tip attachment.   To complete an assembly, the 3cc WHITE WIPER PISTON – DISPENTECH are available within our range for all barrel sizes as well as the ORANGE LUER LOCK TIP CAP – DISPENTECH or the ORANGE ROUND LUER LOCK TIP CAP – DISPENTECH possibly the 3cc CARTRIDGE END CAP – DISPENTECH and a CARTRIDGE ADAPTER DIS-211 – DISPENTECH to be used with a dispenser CARTRIDGE DISPENSERS – DISPENTECH

Material High Density Polypropylene (HDPP)
Volume Capacity 3cc (3ml)
OD=0.45" (11.42mm)
ID=0.38" (9.58mm)
L=2.981" (75.72mm)
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Color Natural (Clear)
Maximum operating pressure is 100 psi (6.9bar)
