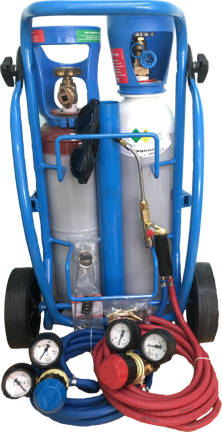

OAWB-750 PRO STATION
A fully OAWB (Oxy Acetylene Welding Brazing) portable wheeled station ready to use. It features a welded construction equipped with a single round tube folding handle for ease of use and improved handling. AIR LIQUIDE network compatible for gas recharges.
STATION COMPONENTS:
Oxy Acetylene gas cylinders trolley.
2 separate gas tubes: (through the handle connected to the hoses)
OX. B05-1000L.
AD. B05-800L.
Brazing equipment.
FEATURES:
Weight: 30kg.
H= 79cm, W=38cm.
cerca 7 hours autonomy ( with a 100l nozzle).
OAB-750 OPTIMUM STATION EQUIPMENT:
2 separate GAS PRESSURE REGULATORS ( 1 for the OX and 1 for the AC).
O. 0 to 16 bars.
AC. 0 to 2,5 bars.
Torch with integrated safety FLASHBACK ARRESTORS and with a removable lance (TORCH Nº0-IT-AF1).
6 nozzle keys set.
5m hose for Oxygen.
5m hose for Acetylene.
Safety glasses- Gas lighter- User manual.
EN 2503 STANDARDS.
OX. F type fitting.
AC. H type fitting.
Please note. We recommend using the Oxygen at a 1,5 bar pressure and the Acetylene at a 0,3 bar pressure.
